Earthing and Short-Circuiting Cables, unequipped

  • To be equipped with connecting components
  • Transparent sheath
  • Waterproof and plastic-sheathed cable entries and node unit, additional anti-kink protection
  • Standard anti-rotation crimped cable lugs (type PK1)
  • Other cable lengths and crimped cable lugs can be selected online via the earthing and short-circuiting configurator
  • Earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

Details

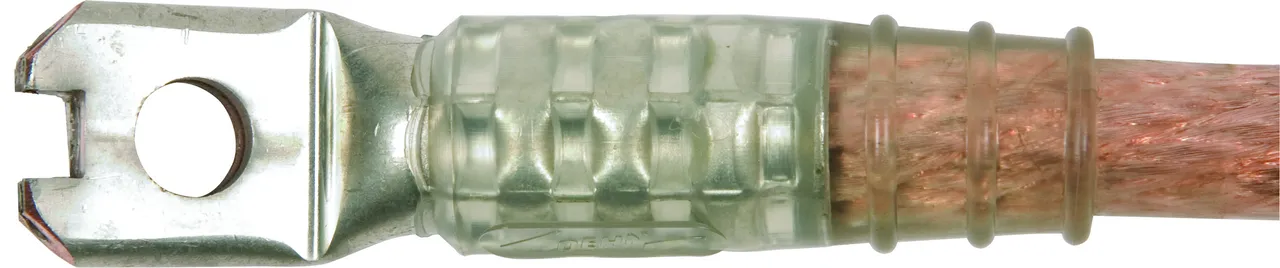

Crimped cable lugs, type PK1:
Standard anti-rotation cable lug with cut-out.
lorem ipsum

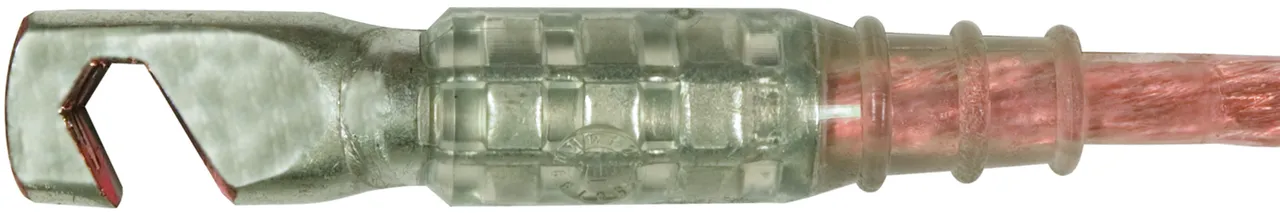

Crimped cable lugs, type PK3:
Hook-type cable lugs up to cable cross-sections of 35 mm2 are available on request.
lorem ipsum

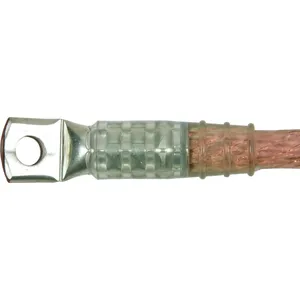

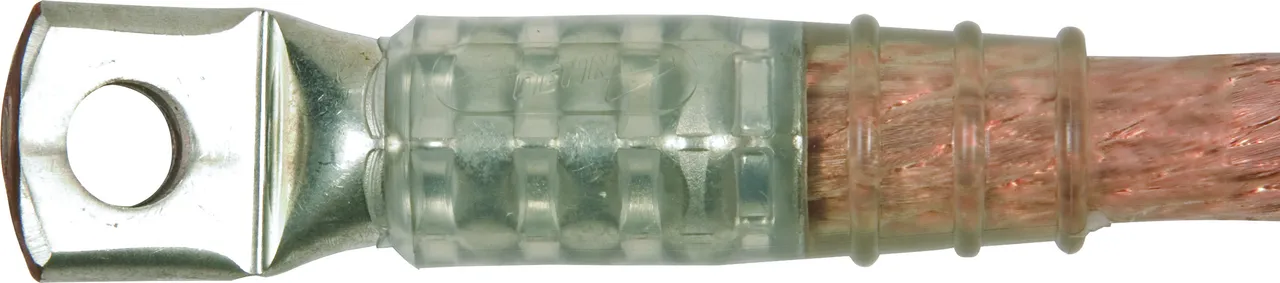

Crimped cable lugs, type PK2:
Cable lugs without cut-out for connecting parts from other manufacturers are available on request.
lorem ipsum

Earthing Cable Cu in accordance with IEC 61138

The cable is delivered without crimped cable lugs and can be ordered by the metre.

8 Products

Part No. 716001 ES YM2 16

GTIN 4013364010406, Customs tariff No. (EU): 85446010, Gross weight: 184.00 g/m, PU: 1.00 m

Images

Additional information



Technical data

Cable cross-section 16 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

Product 716001 was added to Notepad.

Go to Notepad

Product 716001 was added to the cart.

Go to Web-Shop

Part No. 725001 ES YM2 25

GTIN 4013364011793, Customs tariff No. (EU): 85446010, Gross weight: 207.00 g/m, PU: 1.00 m

Images

Additional information



Technical data

Cable cross-section 25 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

Product 725001 was added to Notepad.

Go to Notepad

Product 725001 was added to the cart.

Go to Web-Shop

Part No. 735001 ES YM2 35

GTIN 4013364011847, Customs tariff No. (EU): 85446010, Gross weight: 1.00 m/Stk, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 35 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

Product 735001 was added to Notepad.

Go to Notepad

Product 735001 was added to the cart.

Go to Web-Shop

Part No. 750001 ES YM2 50

GTIN 4013364011809, Customs tariff No. (EU): 85446010, Gross weight: 535.00 g/m, PU: 1.00 m

Images

Additional information



Technical data

Cable cross-section 50 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

Product 750001 was added to Notepad.

Go to Notepad

Product 750001 was added to the cart.

Go to Web-Shop

Part No. 770001 ES YM2 70

GTIN 4013364011762, Customs tariff No. (EU): 85446010, Gross weight: 753.00 g/m, PU: 1.00 m

Images

Additional information



Technical data

Cable cross-section 70 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

Product 770001 was added to Notepad.

Go to Notepad

Product 770001 was added to the cart.

Go to Web-Shop

Part No. 795001 ES YM2 95

GTIN 4013364011816, Customs tariff No. (EU): 85446010, Gross weight: 1.00 kg/m, PU: 1.00 m

Images

Additional information



Technical data

Cable cross-section 95 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

Product 795001 was added to Notepad.

Go to Notepad

Product 795001 was added to the cart.

Go to Web-Shop

Part No. 712001 ES YM2 120

GTIN 4013364011823, Customs tariff No. (EU): 85446010, Gross weight: 1230.00 g/m, PU: 1.00 m

Images

Additional information



Technical data

Cable cross-section 120 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

Product 712001 was added to Notepad.

Go to Notepad

Product 712001 was added to the cart.

Go to Web-Shop

Part No. 715001 ES YM2 150

GTIN 4013364011830, Customs tariff No. (EU): 85446010, Gross weight: 1.00 m/Stk, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 150 mm2
Minimum order quantity *) 1 m
*) Length of earthing cable to be specified when ordering (in whole metres).

Product 715001 was added to Notepad.

Go to Notepad

Product 715001 was added to the cart.

Go to Web-Shop

Single-pole Earthing and Short-circuiting Cables, aluminium version

2 Products

Part No. VGHVBP5 EKV1+0 35 VGHVBP5

GTIN 4013364360389, Customs tariff No. (EU): 85359000, Gross weight: 2.17 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 6.5 kA
Max. short-circuit current Ik 1 s 4.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VGHVBP5 was added to Notepad.

Go to Notepad

Product VGHVBP5 was added to the cart.

Go to Web-Shop

Part No. VKVBG8W EKV1+0 50 VKVBG8W

GTIN 4013364360136, Customs tariff No. (EU): 85359000, Gross weight: 2.55 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 9.3 kA
Max. short-circuit current Ik 1 s 6.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VKVBG8W was added to Notepad.

Go to Notepad

Product VKVBG8W was added to the cart.

Go to Web-Shop

Single-pole Earthing and Short-Circuiting Cables, copper version

8 Products

Part No. V4YPRGE EKV1+0 16 V4YPRGE

GTIN 4013364165243, Customs tariff No. (EU): 85359000, Gross weight: 1.26 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V4YPRGE was added to Notepad.

Go to Notepad

Product V4YPRGE was added to the cart.

Go to Web-Shop

Part No. VSY71K4 EKV1+0 25 VSY71K4

GTIN 4013364163287, Customs tariff No. (EU): 85359000, Gross weight: 1.15 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VSY71K4 was added to Notepad.

Go to Notepad

Product VSY71K4 was added to the cart.

Go to Web-Shop

Part No. V9JF26K EKV1+0 35 V9JF26K

GTIN 4013364163294, Customs tariff No. (EU): 85359000, Gross weight: 2.26 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V9JF26K was added to Notepad.

Go to Notepad

Product V9JF26K was added to the cart.

Go to Web-Shop

Part No. VRJG23Y EKV1+0 50 VRJG23Y

GTIN 4013364163300, Customs tariff No. (EU): 85359000, Gross weight: 3.10 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VRJG23Y was added to Notepad.

Go to Notepad

Product VRJG23Y was added to the cart.

Go to Web-Shop

Part No. VPZBBSL EKV1+0 70 VPZBBSL

GTIN 4013364163317, Customs tariff No. (EU): 85359000, Gross weight: 4.50 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VPZBBSL was added to Notepad.

Go to Notepad

Product VPZBBSL was added to the cart.

Go to Web-Shop

Part No. VZC3FST EKV1+0 95 VZC3FST

GTIN 4013364163324, Customs tariff No. (EU): 85359000, Gross weight: 5.64 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VZC3FST was added to Notepad.

Go to Notepad

Product VZC3FST was added to the cart.

Go to Web-Shop

Part No. V797FE6 EKV1+0 120 V797FE6

GTIN 4013364163188, Customs tariff No. (EU): 85359000, Gross weight: 7.03 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V797FE6 was added to Notepad.

Go to Notepad

Product V797FE6 was added to the cart.

Go to Web-Shop

Part No. VB53TC9 EKV1+0 150 VB53TC9

GTIN 4013364163270, Customs tariff No. (EU): 85359000, Gross weight: 8.72 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VB53TC9 was added to Notepad.

Go to Notepad

Product VB53TC9 was added to the cart.

Go to Web-Shop

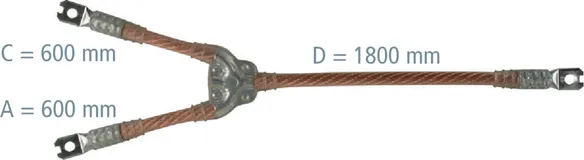

Two-pole Earthing and Short-Circuiting Cables, copper version

8 Products

Part No. V7265NS EKV2+0 16 G V7265NS

GTIN 4013364163355, Customs tariff No. (EU): 85359000, Gross weight: 1.16 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V7265NS was added to Notepad.

Go to Notepad

Product V7265NS was added to the cart.

Go to Web-Shop

Part No. VZL6TGH EKV2+0 25 G VZL6TGH

GTIN 4013364163362, Customs tariff No. (EU): 85359000, Gross weight: 1.47 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VZL6TGH was added to Notepad.

Go to Notepad

Product VZL6TGH was added to the cart.

Go to Web-Shop

Part No. VPHPZV2 EKV2+0 35 G VPHPZV2

GTIN 4013364163379, Customs tariff No. (EU): 85359000, Gross weight: 1.67 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VPHPZV2 was added to Notepad.

Go to Notepad

Product VPHPZV2 was added to the cart.

Go to Web-Shop

Part No. VJ13VWW EKV2+0 50 G VJ13VWW

GTIN 4013364162136, Customs tariff No. (EU): 85359000, Gross weight: 2.43 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VJ13VWW was added to Notepad.

Go to Notepad

Product VJ13VWW was added to the cart.

Go to Web-Shop

Part No. VTJKEZU EKV2+0 70 G VTJKEZU

GTIN 4013364165250, Customs tariff No. (EU): 85359000, Gross weight: 3.46 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VTJKEZU was added to Notepad.

Go to Notepad

Product VTJKEZU was added to the cart.

Go to Web-Shop

Part No. VAM7M6H EKV2+0 95 G VAM7M6H

GTIN 4013364165267, Customs tariff No. (EU): 85359000, Gross weight: 4.63 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VAM7M6H was added to Notepad.

Go to Notepad

Product VAM7M6H was added to the cart.

Go to Web-Shop

Part No. VFV1Z7K EKV2+0 120 G VFV1Z7K

GTIN 4013364163331, Customs tariff No. (EU): 85359000, Gross weight: 5.54 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VFV1Z7K was added to Notepad.

Go to Notepad

Product VFV1Z7K was added to the cart.

Go to Web-Shop

Part No. VLL6JWS EKV2+0 150 G VLL6JWS

GTIN 4013364163348, Customs tariff No. (EU): 85359000, Gross weight: 6.46 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VLL6JWS was added to Notepad.

Go to Notepad

Product VLL6JWS was added to the cart.

Go to Web-Shop

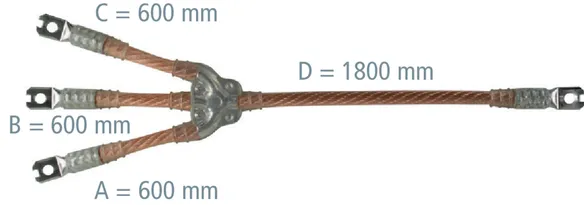

Three-pole Earthing and Short-Circuiting Cables, copper version, same cable cross-section

8 Products

Part No. VE5MT89 EKV3+0 16 G VE5MT89

GTIN 4013364163522, Customs tariff No. (EU): 85359000, Gross weight: 1.36 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VE5MT89 was added to Notepad.

Go to Notepad

Product VE5MT89 was added to the cart.

Go to Web-Shop

Part No. VNC1S9W EKV3+0 25 G VNC1S9W

GTIN 4013364163539, Customs tariff No. (EU): 85359000, Gross weight: 1.73 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VNC1S9W was added to Notepad.

Go to Notepad

Product VNC1S9W was added to the cart.

Go to Web-Shop

Part No. V18JQHQ EKV3+0 35 G V18JQHQ

GTIN 4013364163546, Customs tariff No. (EU): 85359000, Gross weight: 2.08 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V18JQHQ was added to Notepad.

Go to Notepad

Product V18JQHQ was added to the cart.

Go to Web-Shop

Part No. VJ7VGZD EKV3+0 50 G VJ7VGZD

GTIN 4013364163553, Customs tariff No. (EU): 85359000, Gross weight: 2.83 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VJ7VGZD was added to Notepad.

Go to Notepad

Product VJ7VGZD was added to the cart.

Go to Web-Shop

Part No. VH95BZZ EKV3+0 70 G VH95BZZ

GTIN 4013364165274, Customs tariff No. (EU): 85359000, Gross weight: 3.70 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VH95BZZ was added to Notepad.

Go to Notepad

Product VH95BZZ was added to the cart.

Go to Web-Shop

Part No. VM2J7S3 EKV3+0 95 G VM2J7S3

GTIN 4013364165281, Customs tariff No. (EU): 85359000, Gross weight: 5.43 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VM2J7S3 was added to Notepad.

Go to Notepad

Product VM2J7S3 was added to the cart.

Go to Web-Shop

Part No. V8D4AQ2 EKV3+0 120 G V8D4AQ2

GTIN 4013364163485, Customs tariff No. (EU): 85359000, Gross weight: 6.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V8D4AQ2 was added to Notepad.

Go to Notepad

Product V8D4AQ2 was added to the cart.

Go to Web-Shop

Part No. VG3V6T2 EKV3+0 150 G VG3V6T2

GTIN 4013364165298, Customs tariff No. (EU): 85359000, Gross weight: 7.70 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VG3V6T2 was added to Notepad.

Go to Notepad

Product VG3V6T2 was added to the cart.

Go to Web-Shop

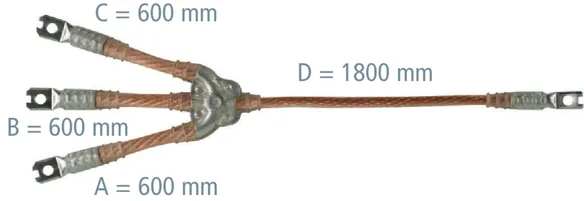

Three-pole Earthing and Short-Circuiting Cables, copper version, reduced cable cross-section

5 Products

Part No. VN35H5D EKV3+0 50 R VN35H5D

GTIN 4013364163560, Customs tariff No. (EU): 85359000, Gross weight: 2.35 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 50/25 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VN35H5D was added to Notepad.

Go to Notepad

Product VN35H5D was added to the cart.

Go to Web-Shop

Part No. VTCS2XV EKV3+0 70 R VTCS2XV

GTIN 4013364163584, Customs tariff No. (EU): 85359000, Gross weight: 3.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 70/35 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VTCS2XV was added to Notepad.

Go to Notepad

Product VTCS2XV was added to the cart.

Go to Web-Shop

Part No. VLB2F3G EKV3+0 95 R VLB2F3G

GTIN 4013364163607, Customs tariff No. (EU): 85359000, Gross weight: 4.21 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 95/35 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VLB2F3G was added to Notepad.

Go to Notepad

Product VLB2F3G was added to the cart.

Go to Web-Shop

Part No. V8115WA EKV3+0 120 R V8115WA

GTIN 4013364163508, Customs tariff No. (EU): 85359000, Gross weight: 4.98 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 120/50 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V8115WA was added to Notepad.

Go to Notepad

Product V8115WA was added to the cart.

Go to Web-Shop

Part No. V11E77B EKV3+0 150 R V11E77B

GTIN 4013364163515, Customs tariff No. (EU): 85359000, Gross weight: 5.68 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 150/50 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V11E77B was added to Notepad.

Go to Notepad

Product V11E77B was added to the cart.

Go to Web-Shop

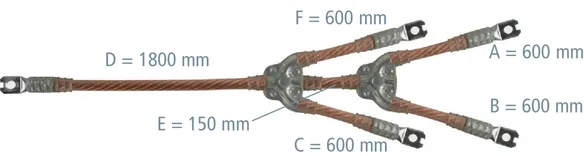

Four-pole Earthing and Short-Circuiting Cables, copper version

8 Products

Part No. VGUVRRG EKV4u0 16 G VGUVRRG

GTIN 4013364164000, Customs tariff No. (EU): 85359000, Gross weight: 1.84 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VGUVRRG was added to Notepad.

Go to Notepad

Product VGUVRRG was added to the cart.

Go to Web-Shop

Part No. VGM214B EKV4u0 25 G VGM214B

GTIN 4013364164017, Customs tariff No. (EU): 85359000, Gross weight: 2.17 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VGM214B was added to Notepad.

Go to Notepad

Product VGM214B was added to the cart.

Go to Web-Shop

Part No. V93UVAP EKV4u0 35 G V93UVAP

GTIN 4013364164024, Customs tariff No. (EU): 85359000, Gross weight: 2.57 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V93UVAP was added to Notepad.

Go to Notepad

Product V93UVAP was added to the cart.

Go to Web-Shop

Part No. V3NCSHX EKV4u0 50 G V3NCSHX

GTIN 4013364164031, Customs tariff No. (EU): 85359000, Gross weight: 3.92 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V3NCSHX was added to Notepad.

Go to Notepad

Product V3NCSHX was added to the cart.

Go to Web-Shop

Part No. V7GN8WU EKV4u0 70 G V7GN8WU

GTIN 4013364162389, Customs tariff No. (EU): 85359000, Gross weight: 4.78 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V7GN8WU was added to Notepad.

Go to Notepad

Product V7GN8WU was added to the cart.

Go to Web-Shop

Part No. VABRSSE EKV4u0 95 G VABRSSE

GTIN 4013364164048, Customs tariff No. (EU): 85359000, Gross weight: 7.12 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VABRSSE was added to Notepad.

Go to Notepad

Product VABRSSE was added to the cart.

Go to Web-Shop

Part No. V27E2GP EKV4u0 120 G V27E2GP

GTIN 4013364163980, Customs tariff No. (EU): 85359000, Gross weight: 8.38 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V27E2GP was added to Notepad.

Go to Notepad

Product V27E2GP was added to the cart.

Go to Web-Shop

Part No. V291ZZT EKV4u0 150 G V291ZZT

GTIN 4013364163997, Customs tariff No. (EU): 85359000, Gross weight: 9.86 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V291ZZT was added to Notepad.

Go to Notepad

Product V291ZZT was added to the cart.

Go to Web-Shop

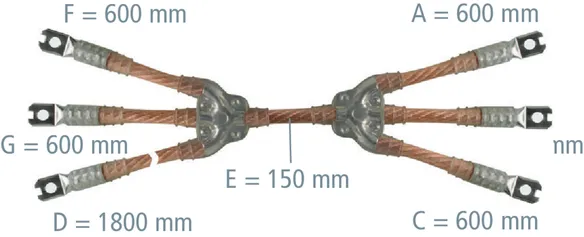

Five-pole Earthing and Short-Circuiting Cables, copper version

8 Products

Part No. VQ7PF5A EKV5+0 16 G VQ7PF5A

GTIN 4013364164154, Customs tariff No. (EU): 85359000, Gross weight: 1.98 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 16 mm2
Max. short-circuit current Ik 0.5 s 4.5 kA
Max. short-circuit current Ik 1 s 3.2 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VQ7PF5A was added to Notepad.

Go to Notepad

Product VQ7PF5A was added to the cart.

Go to Web-Shop

Part No. VZKQZB5 EKV5+0 25 G VZKQZB5

GTIN 4013364164161, Customs tariff No. (EU): 85359000, Gross weight: 2.40 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 25 mm2
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VZKQZB5 was added to Notepad.

Go to Notepad

Product VZKQZB5 was added to the cart.

Go to Web-Shop

Part No. V76D5TH EKV5+0 35 G V76D5TH

GTIN 4013364164178, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 35 mm2
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V76D5TH was added to Notepad.

Go to Notepad

Product V76D5TH was added to the cart.

Go to Web-Shop

Part No. V6VE249 EKV5+0 50 G V6VE249

GTIN 4013364164185, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 50 mm2
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product V6VE249 was added to Notepad.

Go to Notepad

Product V6VE249 was added to the cart.

Go to Web-Shop

Part No. VDXTBGF EKV5+0 70 G VDXTBGF

GTIN 4013364164192, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 70 mm2
Max. short-circuit current Ik 0.5 s 19.5 kA
Max. short-circuit current Ik 1 s 13.8 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VDXTBGF was added to Notepad.

Go to Notepad

Product VDXTBGF was added to the cart.

Go to Web-Shop

Part No. VGCMAA5 EKV5+0 95 G VGCMAA5

GTIN 4013364162518, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 95 mm2
Max. short-circuit current Ik 0.5 s 26.5 kA
Max. short-circuit current Ik 1 s 18.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VGCMAA5 was added to Notepad.

Go to Notepad

Product VGCMAA5 was added to the cart.

Go to Web-Shop

Part No. VVL7AKP EKV5+0 120 G VVL7AKP

GTIN 4013364164130, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VVL7AKP was added to Notepad.

Go to Notepad

Product VVL7AKP was added to the cart.

Go to Web-Shop

Part No. VHV1NKR EKV5+0 150 G VHV1NKR

GTIN 4013364164147, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable cross-section 150 mm2
Max. short-circuit current Ik 0.5 s 42.0 kA
Max. short-circuit current Ik 1 s 29.6 kA
Crimped cable lug PK1
Attention: Please state the relevant Variant No. when ordering.

Product VHV1NKR was added to Notepad.

Go to Notepad

Product VHV1NKR was added to the cart.

Go to Web-Shop
back to top
