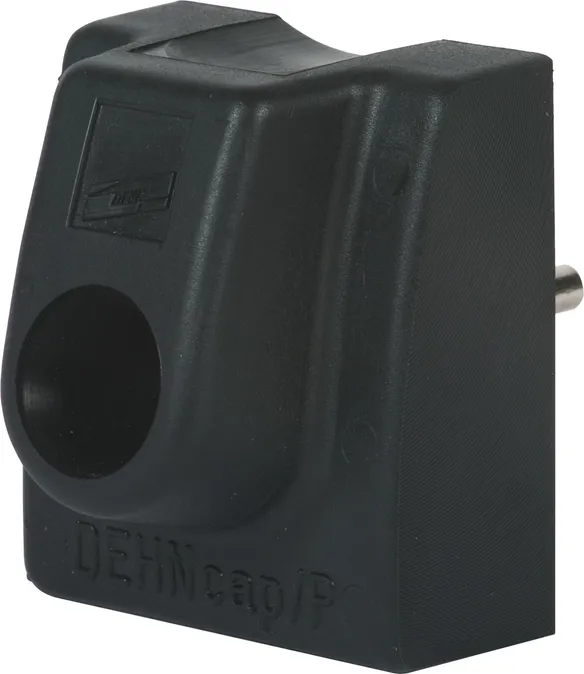

DEHNcap/P Voltage Indicator

Easy verification of isolation from supply voltageCost-effective

DEHNcap/P-HR

1 Product

Part No. 767101 SAG DCA P HR GA

GTIN 4013364069541, Customs tariff No. (EU): 90303320, Gross weight: 60.00 g, PU: 1.00 pc(s)

Images

Additional information

Technical data

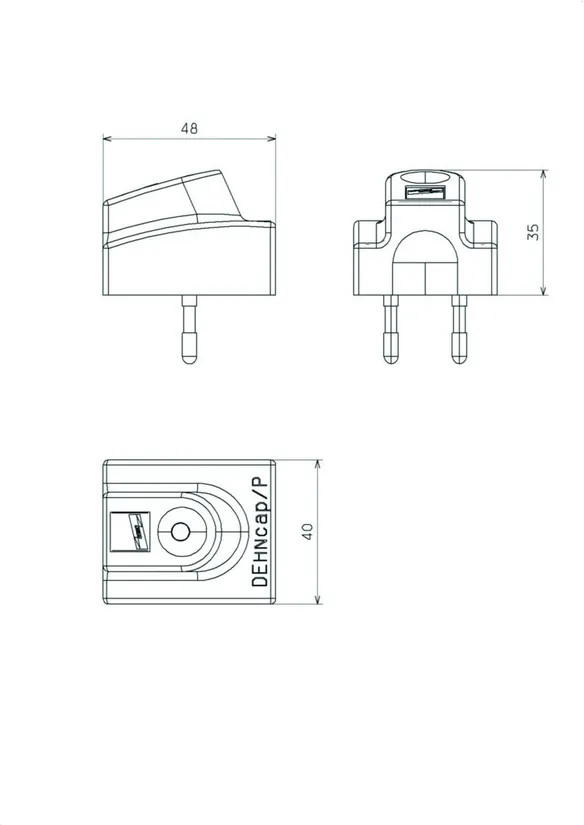

Dimensions	40 x 48 x 35 mm
Plug spacing	19 mm
Indication threshold (HR system)	90 V
Input impedance (HR system)	36 MOhms

Nominal voltage (U_N )	1 ... 45 kV
Frequency	50 Hz
Dimensions	40 x 48 x 35 mm
Plug spacing	19 mm
Indication threshold (HR system)	90 V
Input impedance (HR system)	36 MOhms
Standard	EN/IEC 61243-5 (DIN VDE 0682-415)
Temperature range	–25 °C ... +55 °C
Degree of protection	IP 66
Type of device	Voltage indicator

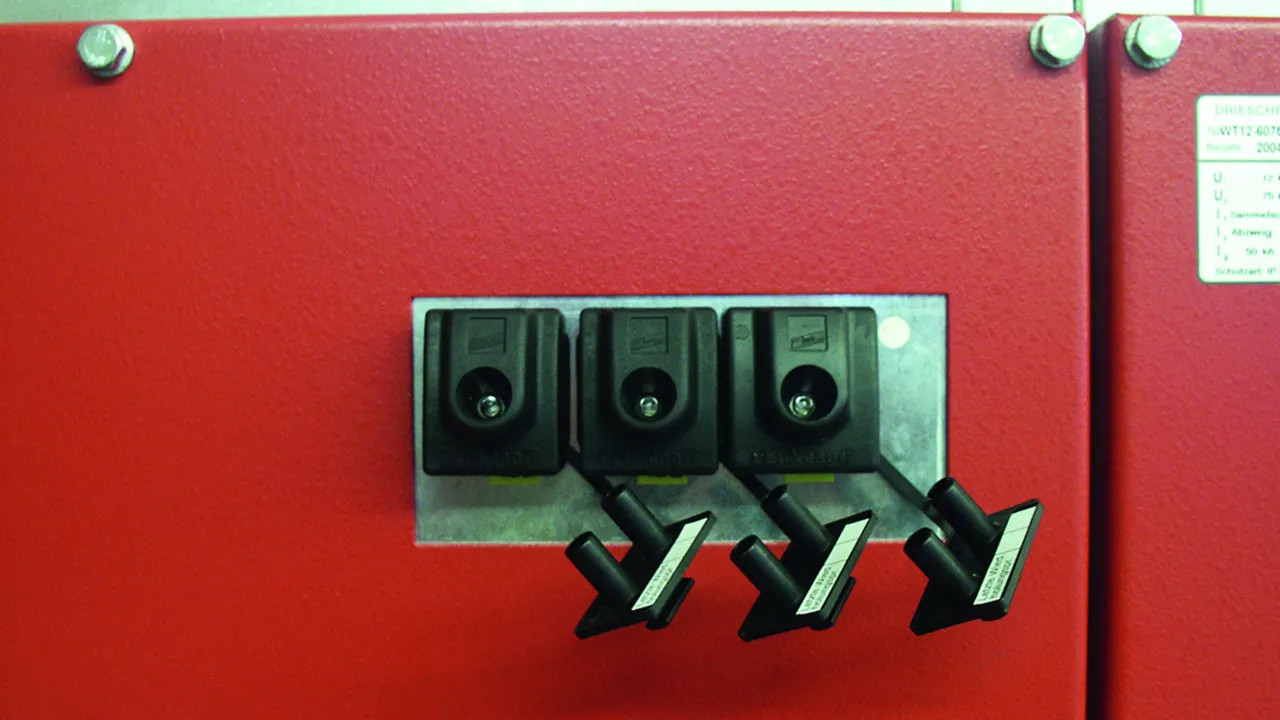

Use	Can also be used as permanent voltage indicator
Indication	Visual
Type of system	HR
Self-testing element	No

Product 767101 was added to Notepad.

Go to Notepad

Product 767101 was added to the cart.

Go to Web-Shop

DEHNcap/P-LRM

1 Product

Part No. 767102 SAG DCA P LRM GA

GTIN 4013364074064, Customs tariff No. (EU): 90303320, Gross weight: 62.00 g, PU: 1.00 pc(s)

Images

Additional information

Technical data

Dimensions	40 x 48 x 35 mm
Plug spacing	14 mm
Indication threshold (LRM system)	5 V
Input impedance (LRM system)	2 MOhms

Nominal voltage (U_N )	1 ... 45 kV
Frequency	50 Hz
Dimensions	40 x 48 x 35 mm
Plug spacing	14 mm
Indication threshold (LRM system)	5 V
Input impedance (LRM system)	2 MOhms
Standard	EN/IEC 61243-5 (DIN VDE 0682-415)
Temperature range	–25 °C ... +55 °C
Degree of protection	IP 66
Type of device	Voltage indicator
Use	Can also be used as permanent voltage indicator
Indication	Visual
Type of system	LRM
