Exothermic moulds

The DEHN Graphite Mould is used for welding connections. The mould controls the direction and speed of the molten weld metal flow and the formation of the weld. The graphite used is a high temperature type that lasts for an average of 50 or more welding connection under normal usage.
Mounted on the side of the mould is the name plate indicating the size of the conductors, type of connection and the size of the weld metal to be used.

NOTE:
1. No alteration whatsoever may be done to the mould.
2. Mould must be absolutely dry used.
3. Water or moisture are dangerous in molten metal environment.

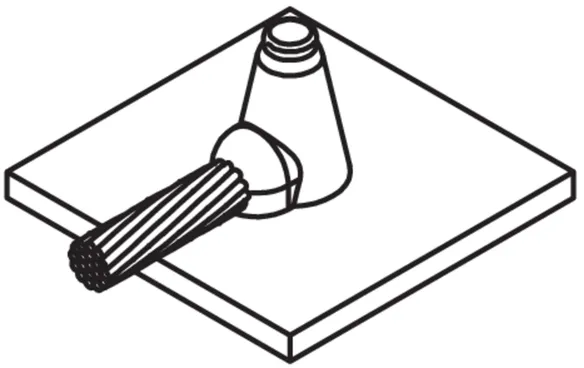

A MODEL

2 Products

Part No. 148100 MCS1H050

GTIN 4013364357969, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

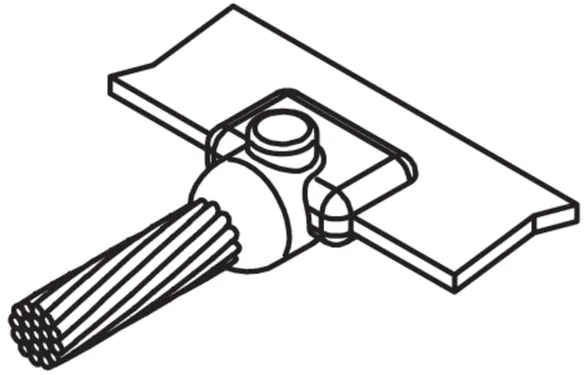

Description Cable to steel surface joint
Size 50 mm² (A) to steel (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148100 was added to Notepad.

Go to Notepad

Product 148100 was added to the cart.

Go to Web-Shop

Part No. 148101 MCS1H070

GTIN 4013364357976, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to steel surface joint
Size 70 mm² (A) to steel (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148101 was added to Notepad.

Go to Notepad

Product 148101 was added to the cart.

Go to Web-Shop

B MODEL

5 Products

Part No. 148110 MCRV/35

GTIN 4013364357983, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

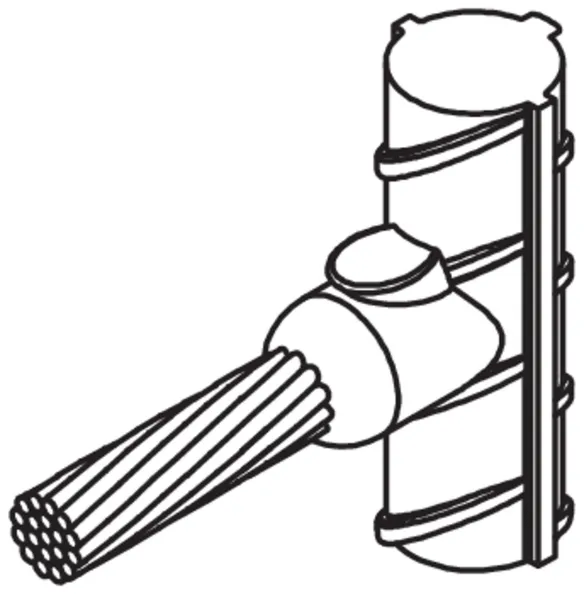

Description Cable to reinforcing joint
Size 35 mm² (A) to 10-40 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148110 was added to Notepad.

Go to Notepad

Product 148110 was added to the cart.

Go to Web-Shop

Part No. 148111 MCRV/50

GTIN 4013364357990, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to reinforcing joint
Size 50 mm² (A) to 10-40 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148111 was added to Notepad.

Go to Notepad

Product 148111 was added to the cart.

Go to Web-Shop

Part No. 148112 MCRV/70

GTIN 4013364358003, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to reinforcing joint
Size 70 mm² (A) to 10-40 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148112 was added to Notepad.

Go to Notepad

Product 148112 was added to the cart.

Go to Web-Shop

Part No. 148113 MCRV/95

GTIN 4013364358010, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to reinforcing joint
Size 95 mm² (A) to 10-40 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148113 was added to Notepad.

Go to Notepad

Product 148113 was added to the cart.

Go to Web-Shop

Part No. 148114 MCRV/120

GTIN 4013364358034, Gross weight: 2.68 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to reinforcing joint
Size 120 mm² (A) to 10-40 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148114 was added to Notepad.

Go to Notepad

Product 148114 was added to the cart.

Go to Web-Shop

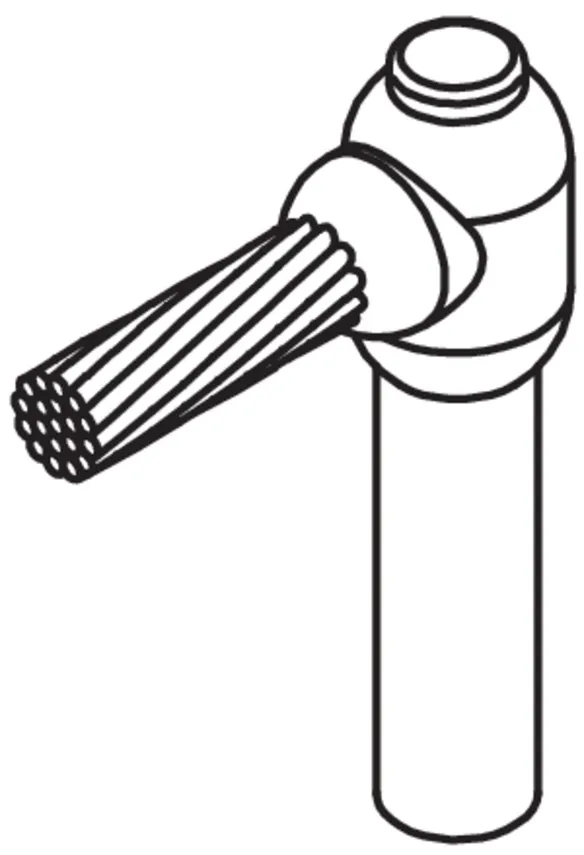

C MODEL

5 Products

Part No. 148120 MERL017.2/016

GTIN 4013364358041, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to earth rod "L" joint
Size 16 mm² (A) to 3/4" rod (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148120 was added to Notepad.

Go to Notepad

Product 148120 was added to the cart.

Go to Web-Shop

Part No. 148121 MERL017.2/035

GTIN 4013364358058, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to earth rod "L" joint
Size 35 mm² (A) to 3/4" rod (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148121 was added to Notepad.

Go to Notepad

Product 148121 was added to the cart.

Go to Web-Shop

Part No. 148122 MERL017.2/070

GTIN 4013364358065, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to earth rod "L" joint
Size 70 mm² (A) to 3/4" rod (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148122 was added to Notepad.

Go to Notepad

Product 148122 was added to the cart.

Go to Web-Shop

Part No. 148123 MERL017.2/120

GTIN 4013364358072, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to earth rod "L" joint
Size 120 mm² (A) to 3/4" rod (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148123 was added to Notepad.

Go to Notepad

Product 148123 was added to the cart.

Go to Web-Shop

Part No. 148124 MERL014.2/070

GTIN 4013364358089, Gross weight: 2.68 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to earth rod "L" joint
Size 70 mm² (A) to 5/8" rod (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148124 was added to Notepad.

Go to Notepad

Product 148124 was added to the cart.

Go to Web-Shop

D MODEL

3 Products

Part No. 148130 MERT017.2/050

GTIN 4013364358096, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

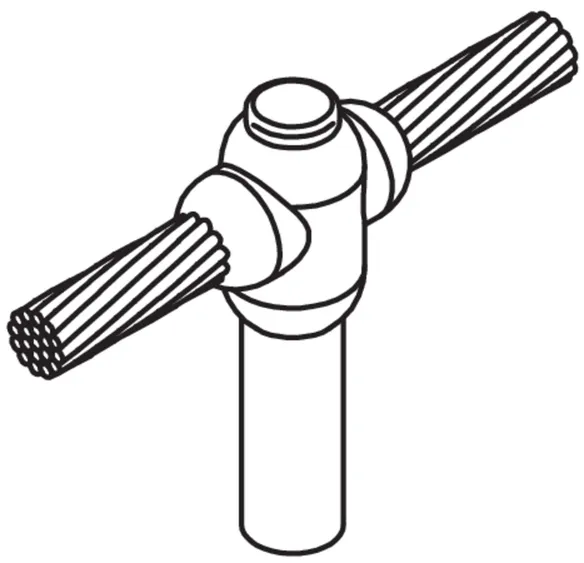

Description Cable to earth rod "T" joint
Size 50 mm² (A) to 3/4" rod (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148130 was added to Notepad.

Go to Notepad

Product 148130 was added to the cart.

Go to Web-Shop

Part No. 148131 MERT017.2/070

GTIN 4013364358102, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to earth rod "T" joint
Size 70 mm² (A) to 3/4" rod (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148131 was added to Notepad.

Go to Notepad

Product 148131 was added to the cart.

Go to Web-Shop

Part No. 148132 MERT014.2/070

GTIN 4013364358119, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to earth rod "T" joint
Size 70 mm² (A) to 5/8" rod (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148132 was added to Notepad.

Go to Notepad

Product 148132 was added to the cart.

Go to Web-Shop

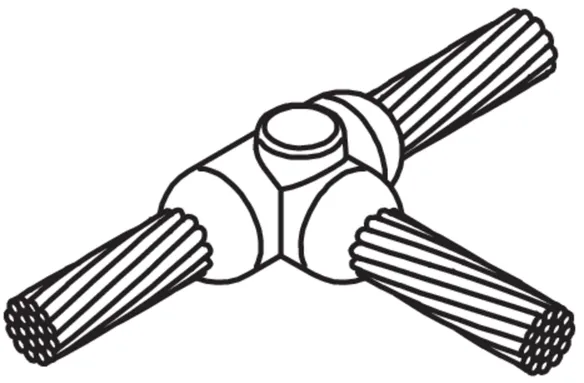

E MODEL

9 Products

Part No. 148140 MCCT025/025

GTIN 4013364358126, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "T" joint
Size 25 mm² (A) to 25 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148140 was added to Notepad.

Go to Notepad

Product 148140 was added to the cart.

Go to Web-Shop

Part No. 148141 MCCT050/016

GTIN 4013364358133, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "T" joint
Size 50 mm² (A) to 16 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148141 was added to Notepad.

Go to Notepad

Product 148141 was added to the cart.

Go to Web-Shop

Part No. 148142 MCCT050/035

GTIN 4013364358140, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "T" joint
Size 50 mm² (A) to 35 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148142 was added to Notepad.

Go to Notepad

Product 148142 was added to the cart.

Go to Web-Shop

Part No. 148143 MCCT050/050

GTIN 4013364358157, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "T" joint
Size 50 mm² (A) to 50 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148143 was added to Notepad.

Go to Notepad

Product 148143 was added to the cart.

Go to Web-Shop

Part No. 148144 MCCT070/050

GTIN 4013364358164, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "T" joint
Size 70 mm² (A) to 50 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148144 was added to Notepad.

Go to Notepad

Product 148144 was added to the cart.

Go to Web-Shop

Part No. 148145 MCCT070/070

GTIN 4013364358171, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "T" joint
Size 70 mm² (A) to 70 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148145 was added to Notepad.

Go to Notepad

Product 148145 was added to the cart.

Go to Web-Shop

Part No. 148146 MCCT095/070

GTIN 4013364358188, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "T" joint
Size 95 mm² (A) to 70 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148146 was added to Notepad.

Go to Notepad

Product 148146 was added to the cart.

Go to Web-Shop

Part No. 148147 MCCT120/070

GTIN 4013364358195, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "T" joint
Size 120 mm² (A) to 70 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148147 was added to Notepad.

Go to Notepad

Product 148147 was added to the cart.

Go to Web-Shop

Part No. 148148 MCCT120/120

GTIN 4013364358201, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "T" joint
Size 120 mm² (A) to 120 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148148 was added to Notepad.

Go to Notepad

Product 148148 was added to the cart.

Go to Web-Shop

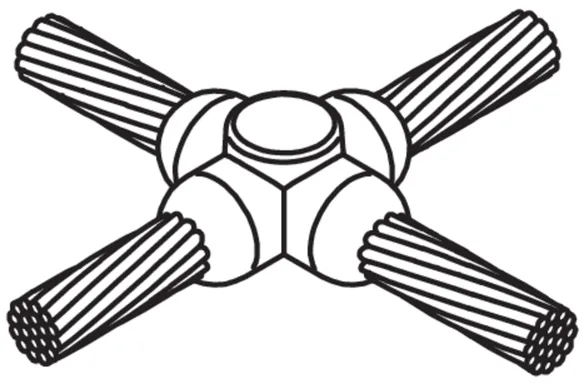

F MODEL

5 Products

Part No. 148150 MCCX050/050

GTIN 4013364358218, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "Cross" joint
Size 50 mm² (A) to 50 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148150 was added to Notepad.

Go to Notepad

Product 148150 was added to the cart.

Go to Web-Shop

Part No. 148151 MCCX070/050

GTIN 4013364358225, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "Cross" joint
Size 70 mm² (A) to 50 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148151 was added to Notepad.

Go to Notepad

Product 148151 was added to the cart.

Go to Web-Shop

Part No. 148152 MCCX120/050

GTIN 4013364358232, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "Cross" joint
Size 120 mm² (A) to 50 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148152 was added to Notepad.

Go to Notepad

Product 148152 was added to the cart.

Go to Web-Shop

Part No. 148153 MCCX120/070

GTIN 4013364358249, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "Cross" joint
Size 120 mm² (A) to 70 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148153 was added to Notepad.

Go to Notepad

Product 148153 was added to the cart.

Go to Web-Shop

Part No. 148154 MCCX120/120

GTIN 4013364358256, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "Cross" joint
Size 120 mm² (A) to 120 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148154 was added to Notepad.

Go to Notepad

Product 148154 was added to the cart.

Go to Web-Shop

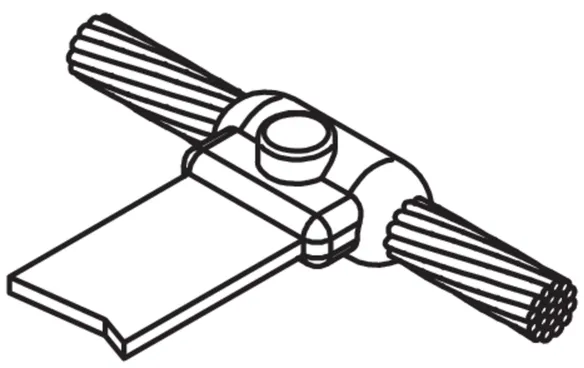

G MODEL

2 Products

Part No. 148160 MCBT050/025X3

GTIN 4013364358263, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to cable "T" joint
Size 50 mm² (A) to 25 x 3 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148160 was added to Notepad.

Go to Notepad

Product 148160 was added to the cart.

Go to Web-Shop

Part No. 148161 MCBT070/025X3

GTIN 4013364358270, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to bar "Cross" joint
Size 70 mm² (A) to 25 x 3 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148161 was added to Notepad.

Go to Notepad

Product 148161 was added to the cart.

Go to Web-Shop

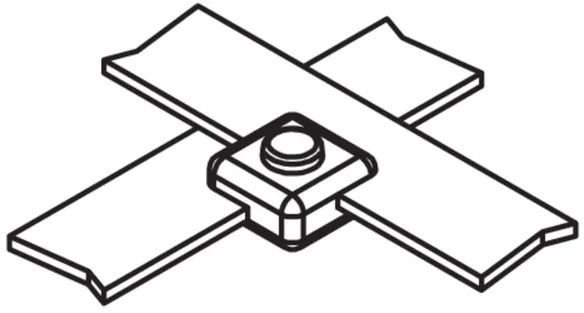

H MODEL

2 Products

Part No. 148170 MB4B25X3/25X3

GTIN 4013364358836, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to bar "Cross" joint
Size 25 x 3 mm (A) to 25 x 3 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148170 was added to Notepad.

Go to Notepad

Product 148170 was added to the cart.

Go to Web-Shop

Part No. 148171 MB4B50X6/50X6

GTIN 4013364358843, Gross weight: 2.68 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to bar "Cross" joint
Size 50 x 6 mm (A) to 50 x 6 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key E

Product 148171 was added to Notepad.

Go to Notepad

Product 148171 was added to the cart.

Go to Web-Shop

I MODEL

2 Products

Part No. 148180 MB3B25X3

GTIN 4013364358850, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to bar "Straight" joint
Size 25 x 3 mm (A)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148180 was added to Notepad.

Go to Notepad

Product 148180 was added to the cart.

Go to Web-Shop

Part No. 148181 MB3B50X6

GTIN 4013364358867, Gross weight: 2.68 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to bar "T" joint
Size 50 x 6 mm (A)
Material Carbon graphite
Temperature withstand 2000 °C
Price key E

Product 148181 was added to Notepad.

Go to Notepad

Product 148181 was added to the cart.

Go to Web-Shop

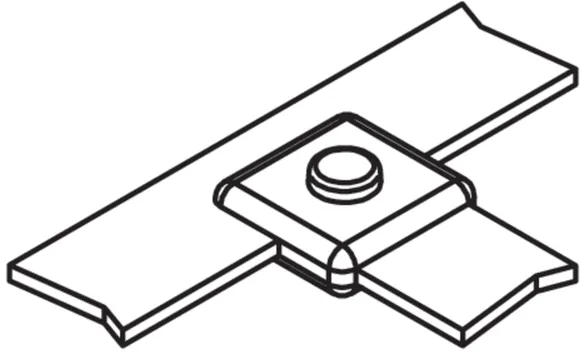

J MODEL

2 Products

Part No. 148190 MB5B25X3/25X3

GTIN 4013364358874, Gross weight: 2.68 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to bar "T" joint
Size 25 x 3 mm (A) to 25 x 3 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148190 was added to Notepad.

Go to Notepad

Product 148190 was added to the cart.

Go to Web-Shop

Part No. 148191 MB5B50X6/50X6

GTIN 4013364358881, Gross weight: 2.68 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to bar "T" joint
Size 50 x 6 mm (A) to 50 x 6 mm (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key E

Product 148191 was added to Notepad.

Go to Notepad

Product 148191 was added to the cart.

Go to Web-Shop

K MODEL

3 Products

Part No. 148200 MBCT070/025X3

GTIN 4013364358898, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to cable "T" joint
Size 25 x 3 mm (A) to 70 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148200 was added to Notepad.

Go to Notepad

Product 148200 was added to the cart.

Go to Web-Shop

Part No. 148201 MBCT240/050X6

GTIN 4013364358904, Gross weight: 2.68 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to cable "T" joint
Size 50 x 6 mm (A) to 240 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148201 was added to Notepad.

Go to Notepad

Product 148201 was added to the cart.

Go to Web-Shop

Part No. 148202 MBCT300/050X6

GTIN 4013364358942, Gross weight: 2.68 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Bar to cable "T" joint
Size 50 x 6 mm (A) to 300 mm² (B)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148202 was added to Notepad.

Go to Notepad

Product 148202 was added to the cart.

Go to Web-Shop

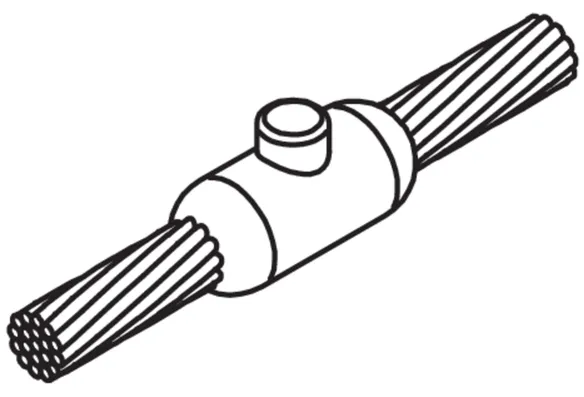

L MODEL

3 Products

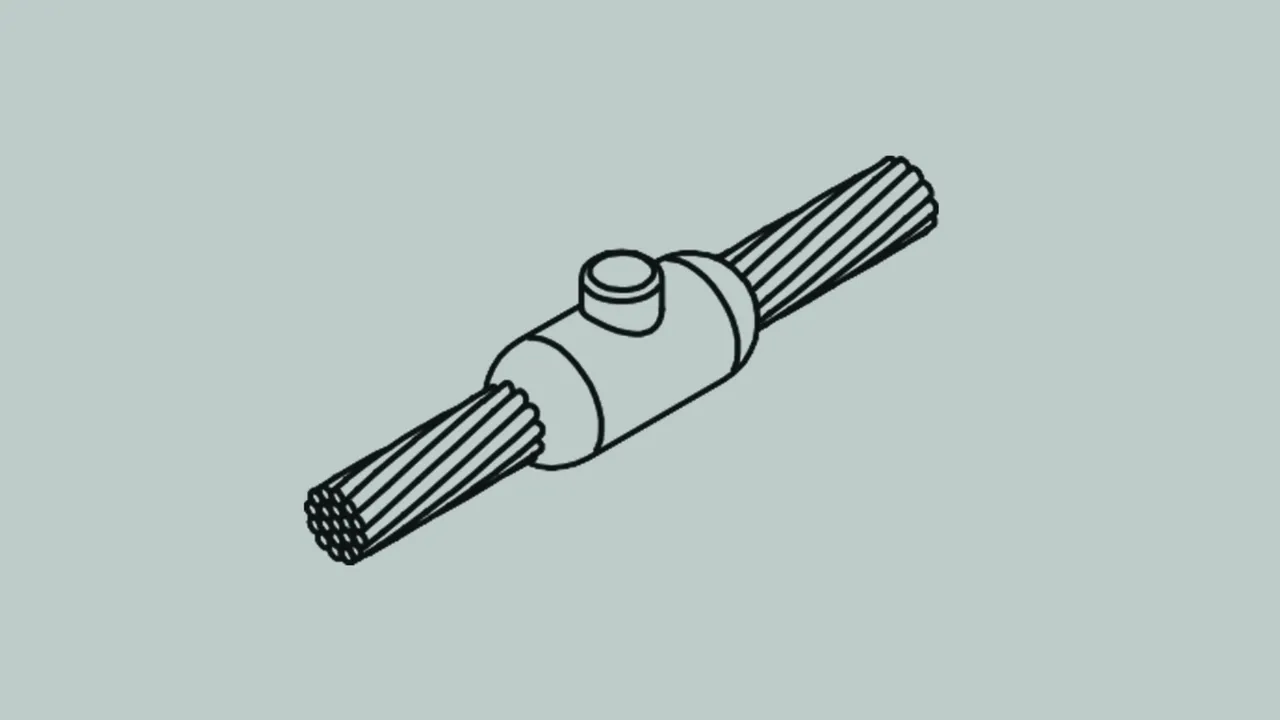

Part No. 148210 MCCS050

GTIN 4013364358911, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "Straight" joint
Size 50 mm² (A)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148210 was added to Notepad.

Go to Notepad

Product 148210 was added to the cart.

Go to Web-Shop

Part No. 148211 MCCS070

GTIN 4013364358928, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "Straight" joint
Size 70 mm² (A)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148211 was added to Notepad.

Go to Notepad

Product 148211 was added to the cart.

Go to Web-Shop

Part No. 148212 MCCS120

GTIN 4013364022614, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Description Cable to cable "Straight" joint
Size 120 mm² (A)
Material Carbon graphite
Temperature withstand 2000 °C
Price key D

Product 148212 was added to Notepad.

Go to Notepad

Product 148212 was added to the cart.

Go to Web-Shop
back to top
