Fixed Earthing Point

For connecting internal metal work or re-bars to internal earthing system.

A MODEL

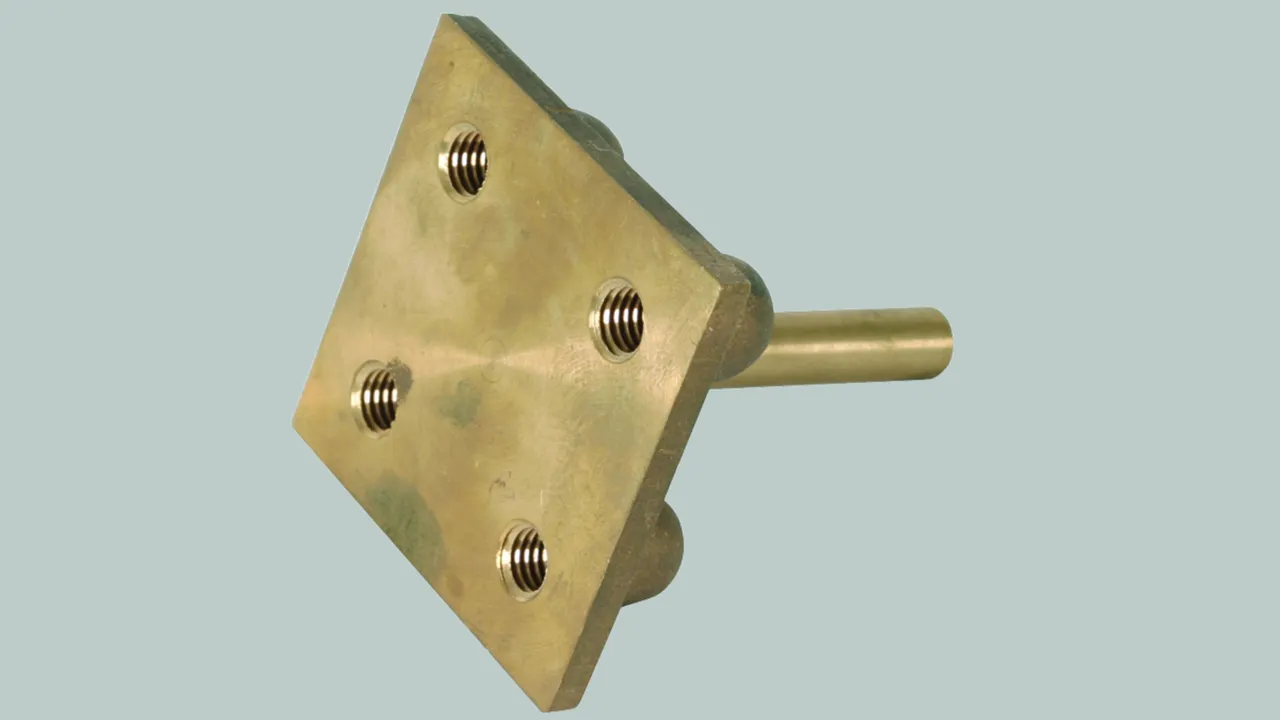

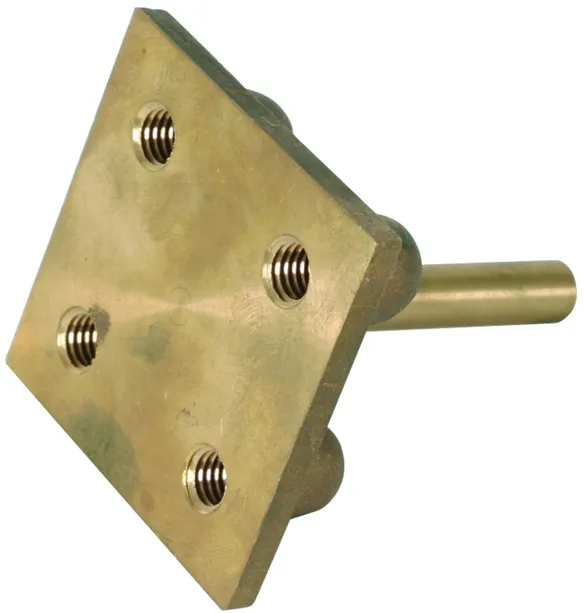

4-hole earthing point no front plate

2 Products

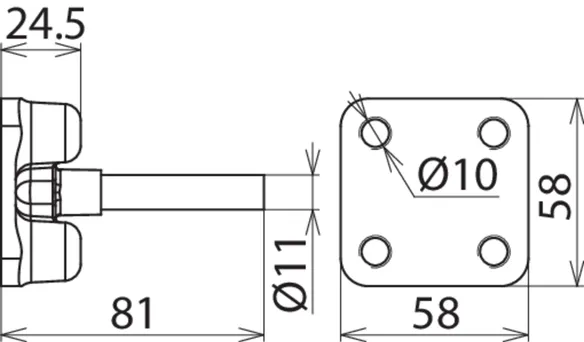

Part No. 118341 EP4--EP 4XM10 R10X50 GM

GTIN 4013364299382, Customs tariff No. (EU): 85359000, Gross weight: 350.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Hole size M10

Product 118341 was added to Notepad.

Go to Notepad

Product 118341 was added to the cart.

Go to Web-Shop

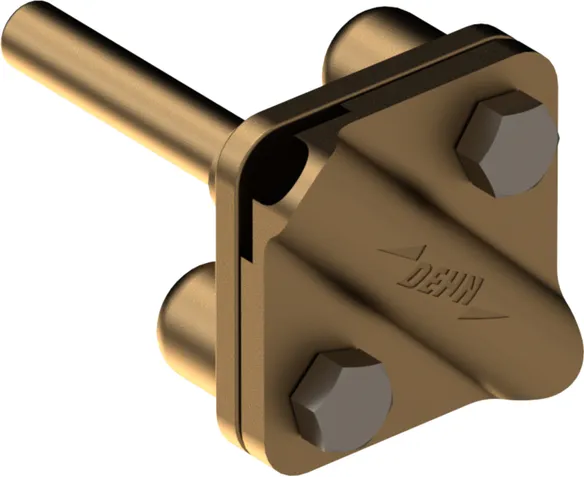

Part No. 118398 EP 25X3 70 GM

GTIN 4013364434844, Gross weight: 390.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Gun Metal
Conductor range 25 x 3 mm tape, 70mm² stranded cable
Approvals IEC / BS EN 62561-1 (based on 118348)

Product 118398 was added to Notepad.

Go to Notepad

Product 118398 was added to the cart.

Go to Web-Shop

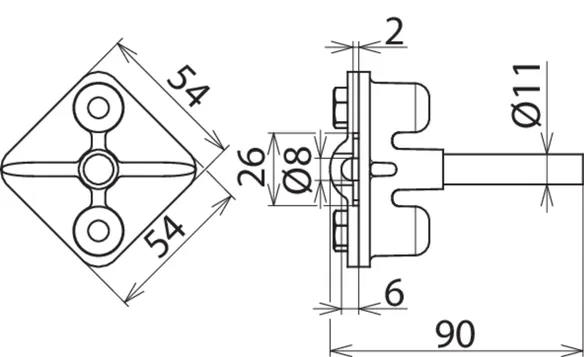

B MODEL

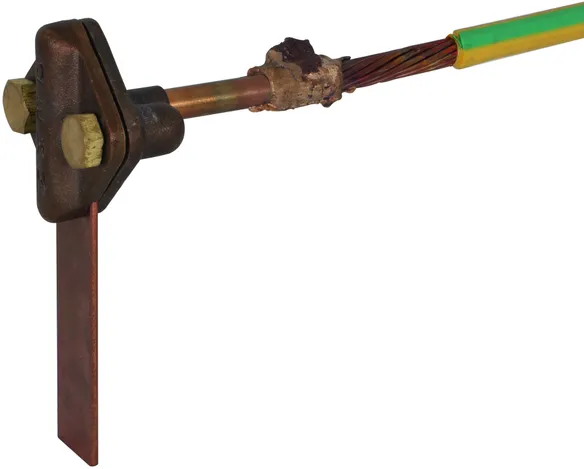

With pre-welded 500 mm long tail of 70 mm2 PVC insulated cable.

1 Product

Part No. 118348 EP 25X3 70 500GNYE GM

GTIN 4013364434868, Gross weight: 750.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor range 25 x 3 mm tape, 70 mm2 cable
Approvals IEC / BS EN 62561-1

Product 118348 was added to Notepad.

Go to Notepad

Product 118348 was added to the cart.

Go to Web-Shop
