EP4 Continuity Tester

Continuity tester for measuring the resistance of e.g. air-termination and down conductors and subsequently installed reinforcing bars of buildings. The tester is suited for measuring the resistance of earth-termination systems according to DIN 18014 with a test current of 200 mA.

1 Product

Part No. 578370 DGP EP4

GTIN 4013364110953, Customs tariff No. (EU): 90303320, Gross weight: 350.00 g, PU: 1.00 pc(s)

Images

Additional information

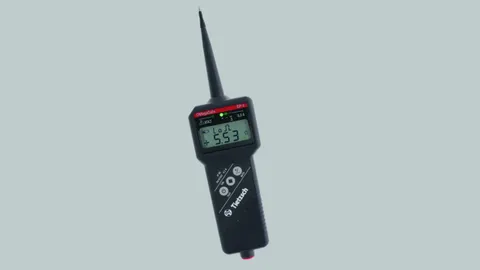

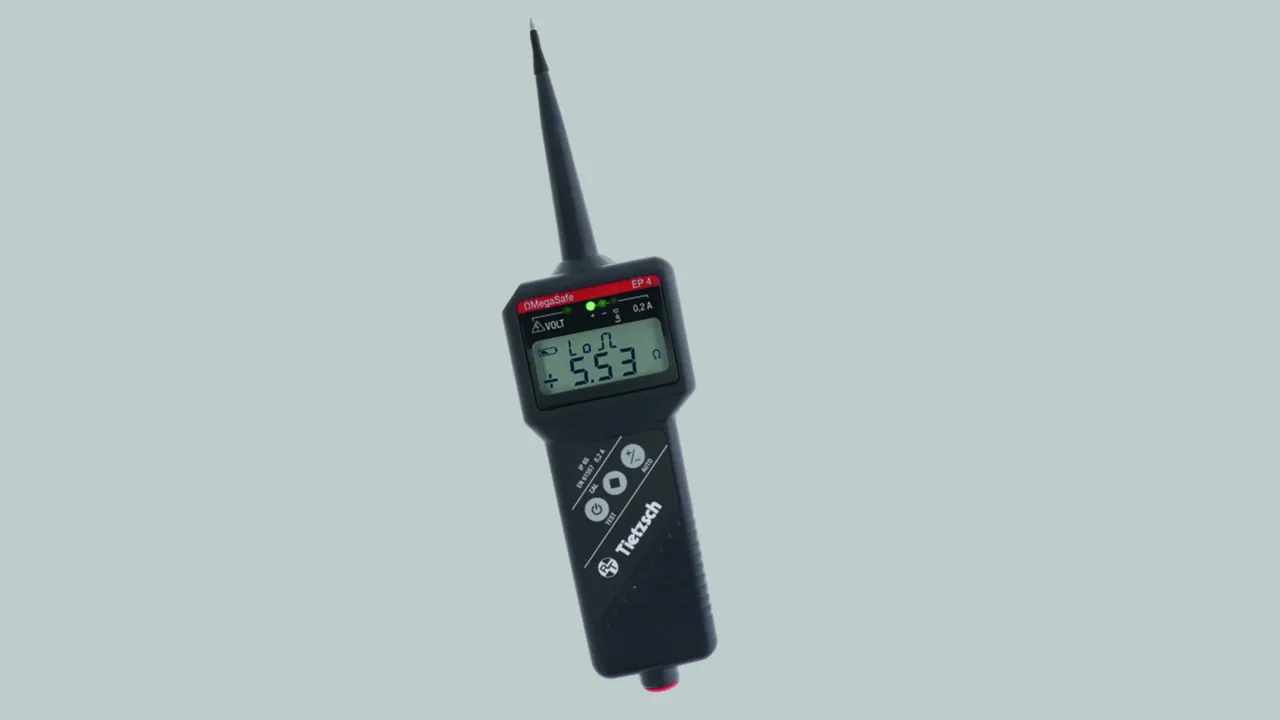

Continuity tester EP4
Continuity tester EP4 for measuring resistances on, for example, air-termination,
down conductors and subsequently used reinforcing bars
of structures with a test current of 200 mA.
Digital LCD display
Different measuring ranges from 0.01 ohms to 2,000 kohms
Measuring current 200 mA ranging up to 10 ohms
Automatic measured value storage
Quick compensation of the measuring line

Brand: DEHN
Type: DGP EP4
Part No.: 578370
or equivalent.

Certificates



Technical data

Display digital LCD display
Resistance measuring range 0.01 Ω to 2,000 kΩ
Measuring current 200 mA in the range up to 10 Ω acc. to EN 61557-4
Dimensions (l x w x d) 230 x 60 x 40 mm
